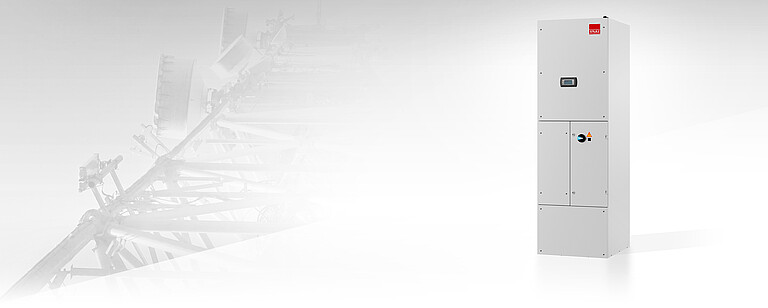

TelAir
Air conditioning units for indoor installation
TelAir units are designed for telecommunication containers and equipment rooms. As the precision air conditioning units are installed indoors, noise is kept to a minimum and the units are protected against environmental influences and vandalism.
Product Overview
Most important benefits
- Lower energy costs thanks to:
- Free Cooling and Mixed modes
- Displacement principle
- Condensation pressure control - Low refrigerant quantity thanks to small-diameter refrigerant pipes
- ERP 2027-ready EC fans for evaporator and condenser
Most important features
- Refrigerant detector with two alarm levels
- Filter monitor and airflow alarm
Most important technical data
- Cooling capacity (kW): 6.2 – 16.9
- Air conduction: Downflow, Displacement
- Lower energy costs thanks to:
- Free Cooling and Mixed modes
- Displacement principle
- Condensation pressure control - Remote monitoring
- Quick connections
- Outside air conditions -20/+54 °C winter/summer
- Low refrigerant quantity thanks to small-diameter refrigerant pipes
- ERP 2027-ready EC fans for evaporator and condenser
- Hermetically sealed refrigeration circuit with a minimal number of joints
- Refrigerant detector with two alarm levels
- Filter monitor and airflow alarm
- Inside and outside temperature sensor
- Zigzag filter class ISO 16890: ePM10 50 %
- Condenser with microchannel technology
- IP54-protected electrical box
- Compressor crankcase heater
- Power supply control for ON/OFF compressors
- Power supply for condensate discharge pump
- Relay for water floor sensor
| Cooling capacity total (kW) | 6.2 – 16.9 |
| Sizes | 2 |
| Air conduction | Downflow, Displacement |
| Refrigerant | R454C (GWP: 148) * R513A (GWP: 631) ** * standard ** optional for applications outside the EU |
Need more information?
Download our brochure!
All details about TelAir
Climate. Customized.
From standard units to fully customized solutions
The ability to offer such a wide range to customers is the embodiment of our philosophy, "Climate. Customized.". Size, design, air conduction, system or control: TelAir is a model of adaptability and the shelter units can be precisely adapted to your individual requirements. In addition, a variety of options and equipment versions are available to achieve the optimum result.
Learn more about Climate. Customized.
Optimum operational reliability for your application
Connectivity for maximum availability
Monitoring and remote diagnosis are available for all units via a web interface. This enables rapid intervention and therefore immediate troubleshooting in all situations. What’s more, our units support numerous communication protocols for integration in building services management systems.
- Data recording
- Remote configuration
- Firmware updates
- Alarm relaying
Backup operation for maximum reliability
In telecommunications, in particular, high reliability is vital to prevent any loss of network availability. Thanks to the additional 48 V DC power source, backup operation with Free Cooling is available. If the main power supply fails, the Shelter Cooling units continue providing backup cooling to keep your system running reliably.
Direct Free Cooling
TelAir equipment room and container cooling units are especially efficient in Free Cooling mode. With their high airflow in Free Cooling and Mixed modes, the units achieve maximum EER values.

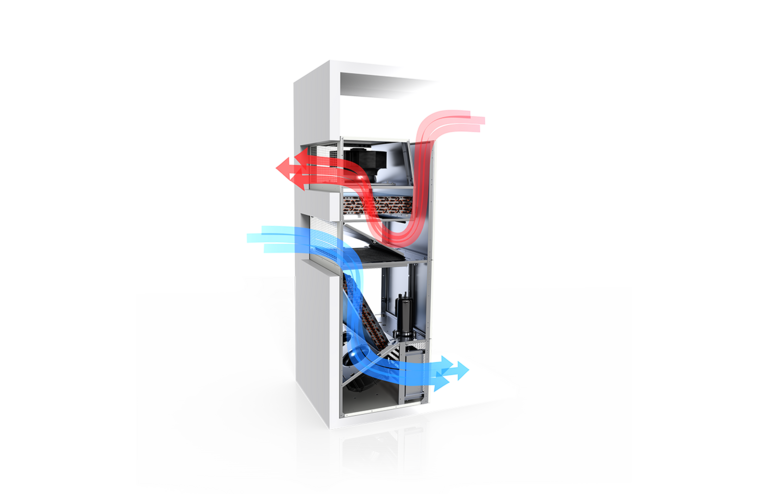

Free Cooling mode
At low outside temperatures, outside air is used directly for cooling. The outside air is conveyed into the interior when the air damper is open. Energy-intensive compressor cooling is not needed when outside temperatures are low. This way, Free Cooling brings you huge potential savings.
Mixed mode
If Free Cooling is not sufficiently available due to the outside temperature, the unit can still use the outside air to some extent. The result is a combination of compressor cooling and Free Cooling.
Compressor mode (DX)
If outside temperatures are so high that the outside air would no longer help to cool the inside, all cooling is generated using the compressor. Even in this mode, the perfectly harmonized components we use keep STULZ air conditioning units work reliably and efficiently.
Savings with Free Cooling
Efficient air conduction and intelligent control of operating modes enable savings of up to 83 % to be achieved.
Reliable operation in any weather conditions
Whether your business-critical equipment room cooling system is working in temperatures of up to 54 °C, in ambient air contaminated by particles, in temperatures as low as -40 °C, or in a permanently humid environment – you can always rely on systems from STULZ.
Plug & Play
- All products in the Shelter Cooling series are factory tested, filled with refrigerant and ready for connection and operation right from the start
- Reduced installation time and costs
- Speedier start-up
Flexibility
Flexibility thanks to variable air conduction

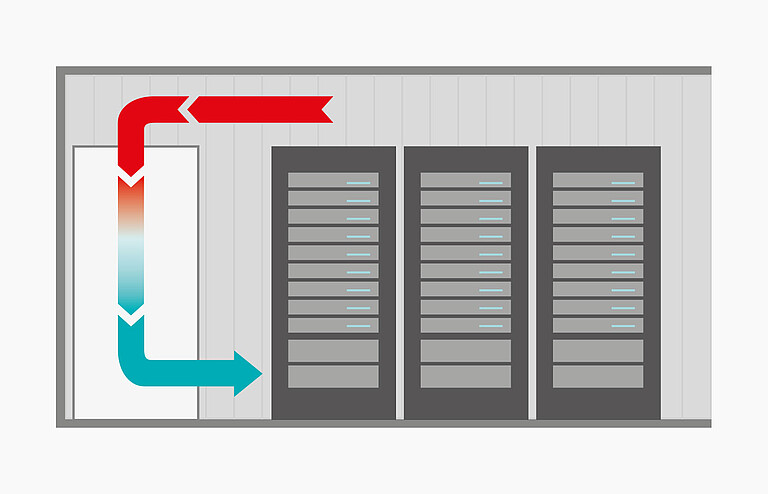

The individual models of the TelAir series are available as Downflow and Displacement versions. In the Displacement model, the airflow can be directed horizontally or vertically entirely individually as required via adjustable fins, to ensure optimum operation of your servers.
EC compressor
Advantages of the speed-controlled EC compressor
- Maximum energy efficiency for hvac outside units in partial load mode
- Constant supply air temperature
- R454C (GWP: 148) as standard;
optional R513A (GWP: 631) for applications outside EU - Integrated compressor soft start
- Long service life thanks to continuous operation without compressor on/off cycles
Control and monitoring

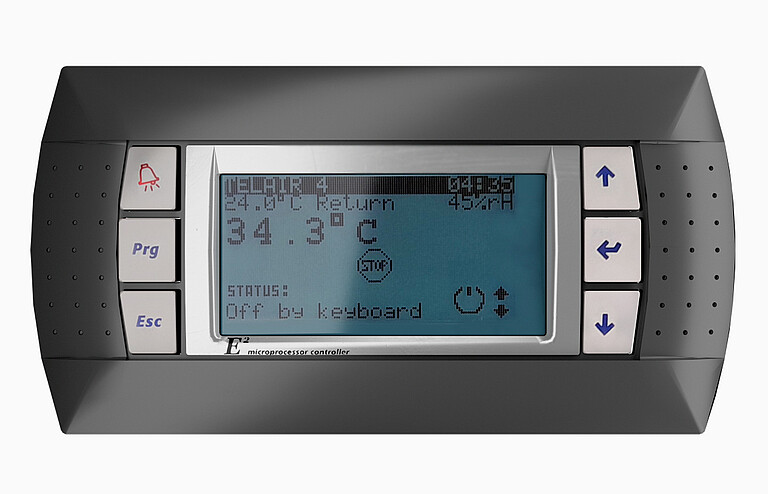

The integrated control system, with an optional operator terminal, manages all functions of STULZ Shelter Cooling products. The operator terminal, consisting of a keypad and LCD, displays the most important operating states and alerts.
Options
Thanks to the numerous options available, you can perfectly adapt STULZ units to your particular requirements.
- Winter kit down to -40 °C
- Backup operation with either 48 V DC, 230 V AC or 230 V/50 Hz/1 Ph
- External operator terminal
- Electric heater
- Humidity sensor
- Filter ePM10 55% (M5 EN779)
- Seaworthy packaging
- Special power supply (60Hz) on request
Close to you around the world
As a company with locations across the globe, we offer everything you need in the extremely dynamic world of information technology – plus professional advice in the right place at the right time.
With 35 subsidiaries, including 10 production sites, and sales and service partners in over 140 countries, we make sure we are close to our customers wherever they are in the world.
Service and maintenance
Our trained and experienced sales and service partners are located in over 140 countries. The resulting proximity to our customers allows fast response times. In addition, regular training courses and an active exchange of information ensure high quality and an extensive knowledge of all our products. This way, you can be sure your products are in the best hands and get the right maintenance – all over the world.
Test Center
At our test center, you can have TelAir units tested under your individual operating and site conditions. This creates transparency and confirms the unit's performance and energy consumption.
