Micro DC I-Series
Micro DC I-Series – A redefined
server room infrastructure
As companies expand their IT infrastructure, the number of servers eventually exceeds capacity, requiring additional racks for new hardware. With rising hardware investments, it is essential to create environments that ensure efficient server operation and hardware longevity. For organizations building small server rooms, the traditional data center design and build process can be time-consuming and complex, especially for setups with lesser than 10 server racks. Often, customers incur unnecessary expenses on features like raised floors and extensive room fit-outs. Additionally, attempts to cut costs can introduce energy inefficiencies. A micro data center offers a streamlined solution, ensuring optimal operation of high-end server hardware.
Product Overview
Most important benefits
- Efficient, close-coupled cooling enables server hardware to perform at peak levels
- Proper power conditioning and backup for business continuity
Most important features
- More computing power on a smaller footprint: saves up to 50% space
- Complete data center infrastructure including power, cooling, UPS, batteries, fire & security systems, IT racks networking and remote monitoring
Most important technical data
- Cooling capacity In-rack: 3.5 – 7
- Cooling capacity Side-mounted: 7 – 40
- Efficient, close-coupled cooling enables server hardware to perform at peak levels
- Proper power conditioning and backup for business continuity
- Protection from dust, water & rodents (IP54 rack)
- Security from unauthorized access
- Compliance with fire and safety provisions
- Video surveillance
- Suitable for 24/7 operation with maximum uptime
- More computing power on a smaller footprint: saves up to 50% space
- Complete data center infrastructure including power, cooling, UPS, batteries, fire & security systems, IT racks networking and remote monitoring
- Deployment time is reduced by 75%
- Modular and flexible configuration of up to 8 racks
- Rack-optimized design reduces need for construction work and dependencies on building infrastructure; does not require an air-conditioned environment
- Close-coupled air conditioning approach helps reduce cooling area and hence power consumption
- No need for a raised floor; flexible placement within a building even in an open-plan office space (excluding basement and terrace)
- Hot aisle/cold aisle arrangement
- Easy to dismantle and relocate the entire facility to a new location
| In-rack cooling Zero U | |
| System capacity (kW) | 3.5 – 7 |
| Dimensions | Height (mm): 32U / 42U / 47U / 52U Width (mm): 800 Depth (mm): 1,200 |
| In-rack cooling U-Mounted Type | |
| System capacity (kW) | 3.5 – 7 |
| Dimensions | Height (mm): 5U / 10U Width (mm): 800 Depth (mm): 1,200 |
| Side-mounted cooling | |
| System capacity (kW) | 7 – 40 |
| Dimensions | Height (mm): 42U / 47U / 52U Width server rack (mm): 600 / 800 Depth (mm): 1,200 |
| Method of air contact | Direct Expansion (DX) Chilled Water (CW) |
Need more information?

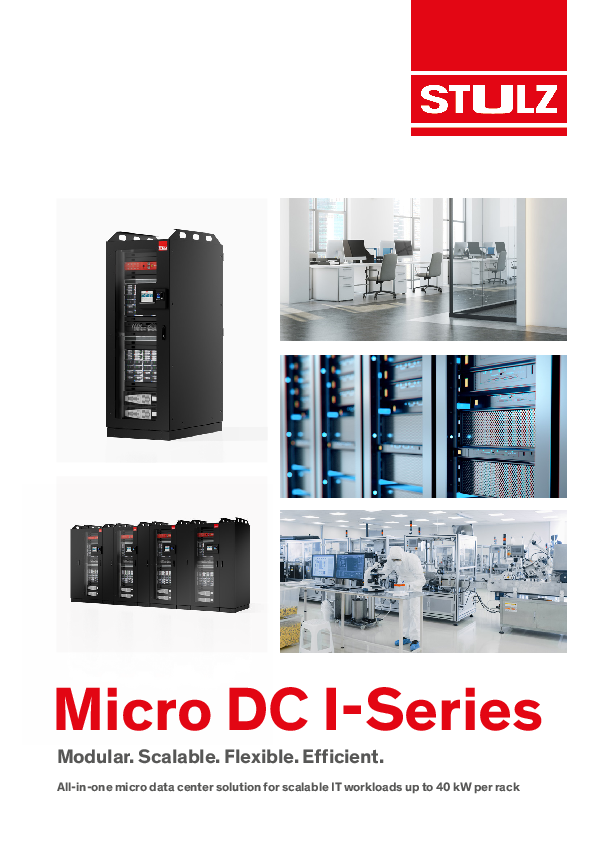

Download our brochure!
Pre-designed solution to save time and expenses
STULZ Micro DC I-Series offers a high-quality, pre-designed approach that uses 50% less floor space and can be deployed in just a quarter of the time compared to traditional server room designs. Specifically designed for hosting 1 to 8 IT racks, this efficient system reduces the risk associated with the extensive engineering required for custom installations, saving both time and money. This solution is pre-fabricated and ready to be shipped, assembled, and integrated at customer premises, providing a streamlined, cost-effective, and high-performance server room setup.
Server room in a rack
A pre-designed and pre-fabricated solution
STULZ helps you determine your server room requirements, works with you to configure the data center from the available micro data center designs, and provides complete installation and testing services. STULZ is the single point of contact and manages the project from start to finish, providing a robust “turnkey server room”. This helps customers focus on their core business and reduces the need to divert key personnel to a project they may have limited experience with.
Cooling options
In-rack cooling

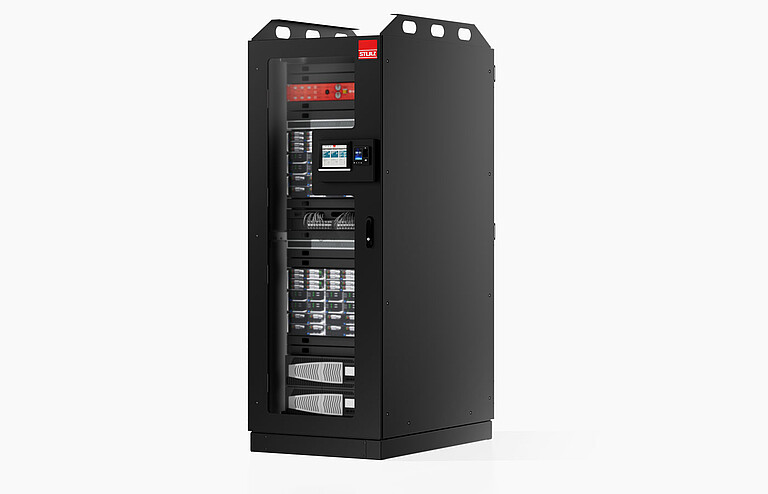

This stand-alone solution, with one or two racks as standard, contains all the important components of a data center in a purpose-built housing. Rack, cable management, UPS, power supply, cooling, monitoring and fire protection can be integrated as standard. The cooling components are integrated in the rack in a U-mounted arrangement at the bottom of the rack or in the side of the rack in a Zero U arrangement, without the need for U space.

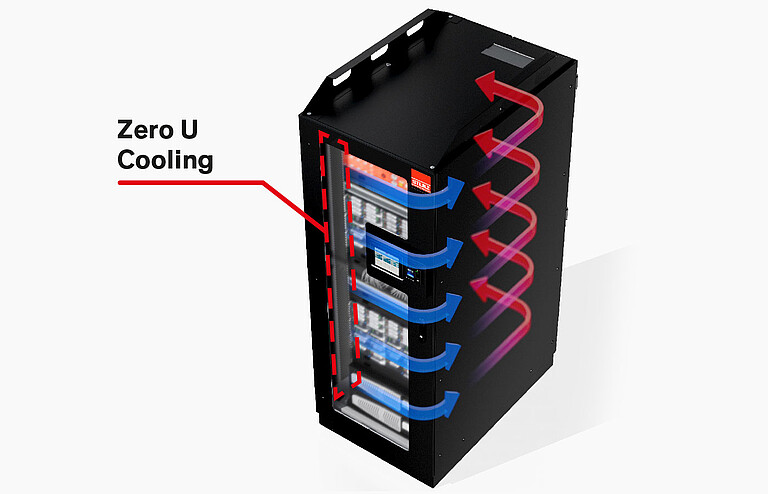

Zero U cooling option allows more space to be allocated to servers as it does not take up any U space.

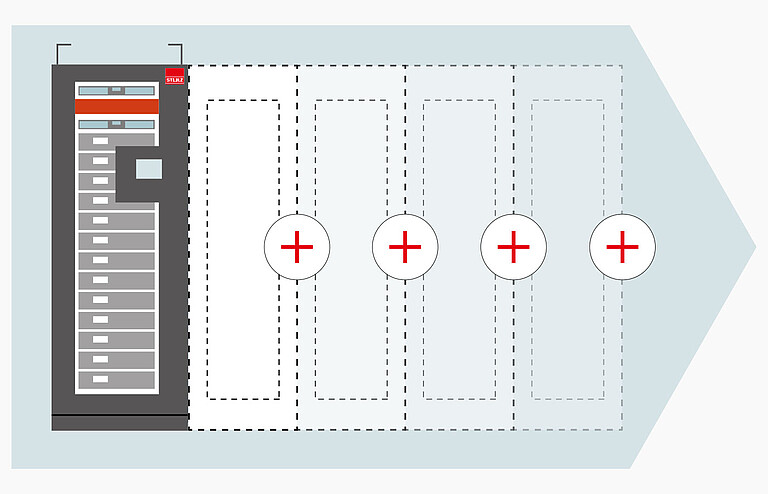

Scalability: The STULZ Micro DC I-Series offers an incomparable level of scalability that makes it possible to grow along with requirements.
| Solution • Rack height options : 32U / 42U / 47U / 52U • Rack width options : 800 mm • Rack depth options : 1,200 mm • Single rack solution • Two rack solution (bayed) | In-rack cooling: Zero U Cooling capacity options • 3.5 kW / 7 kW |
| Cooling systems • Direct Expansion (DX) | In-rack cooling: U-Mounted Type Cooling capacity options • 3.5 kW (height 5U) / 7 kW (height 10U) |
Side-mounted cooling

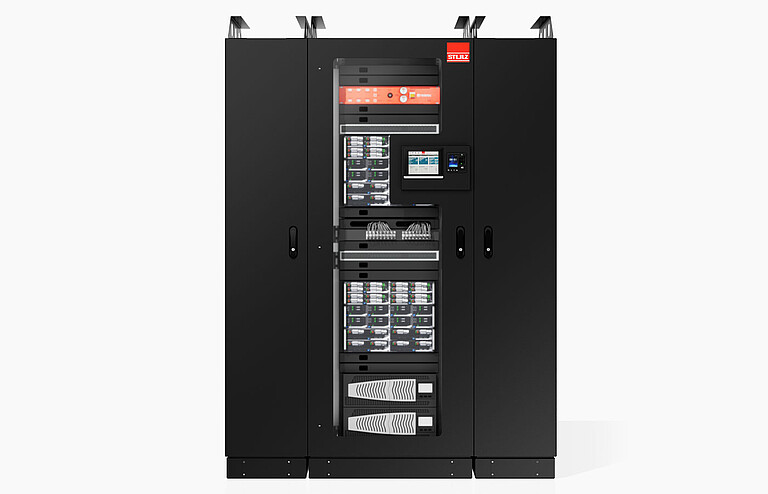

The Micro DC I-Series is an all-in-one modular scalable solution from single rack solution going up to eight rack solution bayed together to form a single row of racks with integrated cooling system incorporating all the key infrastructure components of a data center.
Scalability: The STULZ Micro DC I-Series offers an incomparable level of scalability that makes it possible to grow with the requirements.
| Solution • Rack height options : 42U / 47U / 52U • Rack width options : 600 / 800 mm • Rack depth options : 1200 mm • Standard configuration : 1 to 8 Racks (bayed system) | Side-mounted cooling – DX: Side-mounted cooling – CW : |
| Cooling Systems • Direct Expansion (DX) • Chilled Water (CW) | Side-mounted cooling – CW : (400 mm wide cabinet) • 7 kW / 10 kW (two modules in each cooling cabinet) • 15 kW to 40 kW (standalone system) |
Data center in a rack
The unit is an all-in-one innovative, intelligent, compact server room infrastructure solution from a single OEM. It includes racks, power, cooling, UPS, fire detection and suppression, remote real-time monitoring, rodent repellent, video surveillance, and more. Precisely designed for mission-critical server room applications, it uses high-quality products to deliver a flexible, efficient, scalable, and intelligent server room infrastructure standardized for this growing industry.
A variety of options and equipment versions is available to achieve the optimum result.
- Cooling
Provides cooling directly to IT equipment while efficiently capturing its heat - UPS & batteries
Ensure clean power feed and continuity to critical IT infrastructure - Power distribution
Smart PDUs with environmental probe & temperature humidity sensor - Monitoring and security
7” touchscreen display that provides easy access to information for power, thermal management, and security. Remote monitoring. - Fire detection and suppression system
Fire monitoring and suppression - Access control and security
Access to the racks is protected by biometric access control - Automated emergency fans
Door opening feature in the event of overheating.
Highlights
The STULZ India advantage

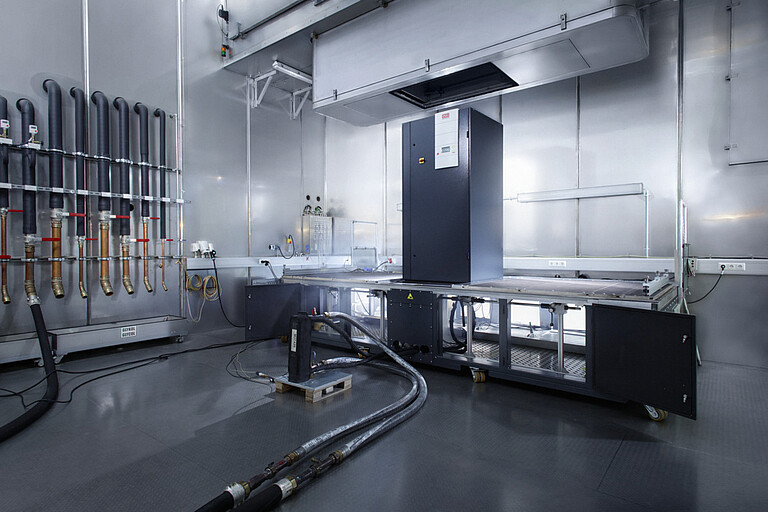

Witness test center
The STULZ state-of-the-art witness test center in India is located at its production facility in Navi Mumbai. The test center is equipped for a variety of tests on all equipment based on customers' requirements. Tests are conducted in accordance with DIN standards to determine system performance and energy consumption under simulated design conditions.

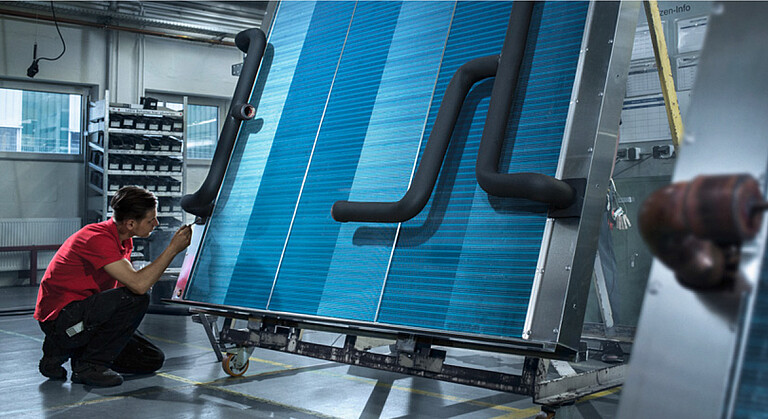

State-of-the-art manufacturing
Products are shipped and installed from STULZ's stateof- the-art design and manufacturing facility in Navi Mumbai, India, which covers 174,000 square feet. It houses the company's largest Engineering Excellence Center (EEC) outside of Germany.
Efficient service support
Our trained and experienced sales and service partners are available in over 140 countries round the clock. The resulting proximity to our customers enables rapid reaction times. Onside technicians are connected to the factory and service centers via a smart app for fast service and prompt part replacement.
